    Chicken: slides



Slide show (in Dutch- CLICK ON THE IMAGE FOR ENGLISH) about the early embryology of the chicken
Scroll with the mouse over the slide numbers to allow the slide to appear in the central frame.
Click on the slide number to get a zoom view in a new window
  • Slide 1 Introduction/colophon
  • Slide 2 Anatomy of the chicken
  • Slide 3 Function of the reproductive organs
  • Slide 4 Anatomy of the egg

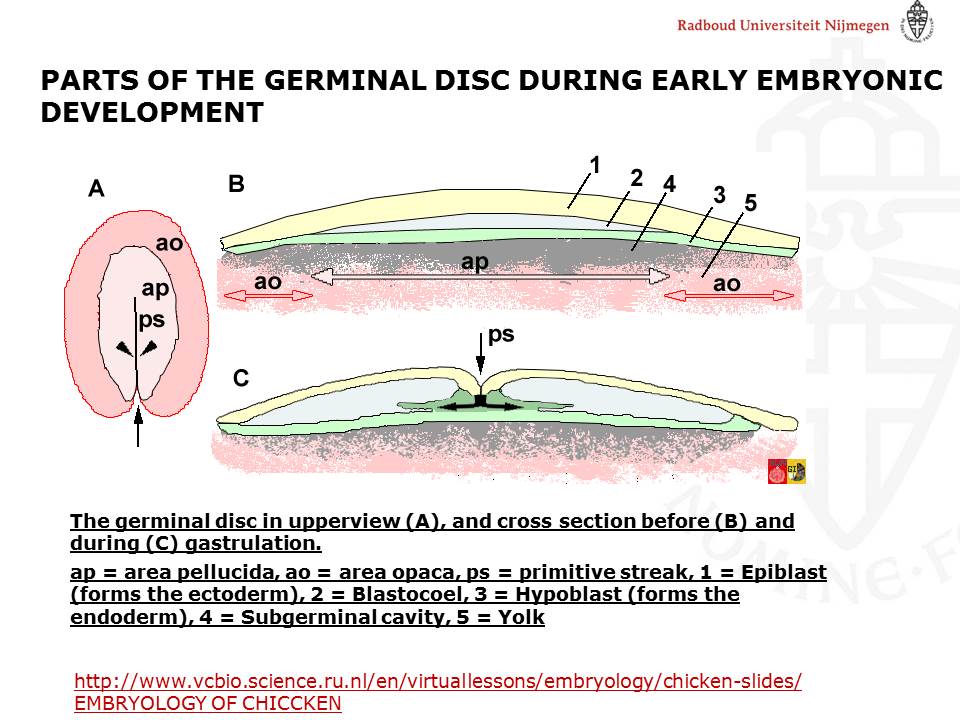

  • Slide 5 Kiemvlek
  • Slide 6 18 hrs after fertilization
  • Slide 7 20 hrs after fertilization
  • Slide 8 22 hrs after fertilization

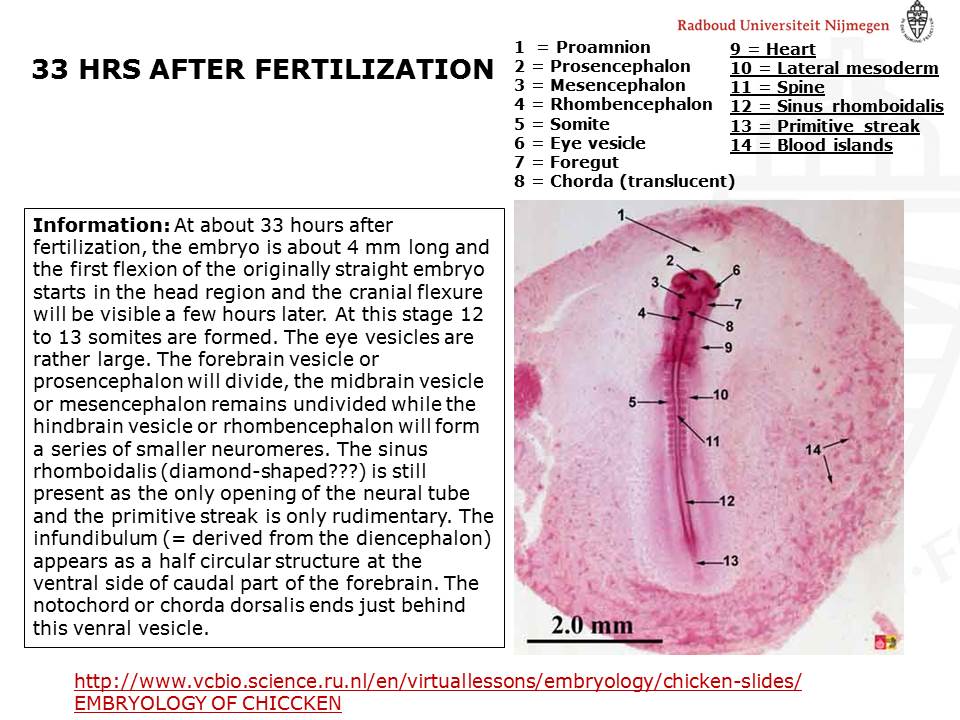

  • Slide 9 33 hrs after fertilization

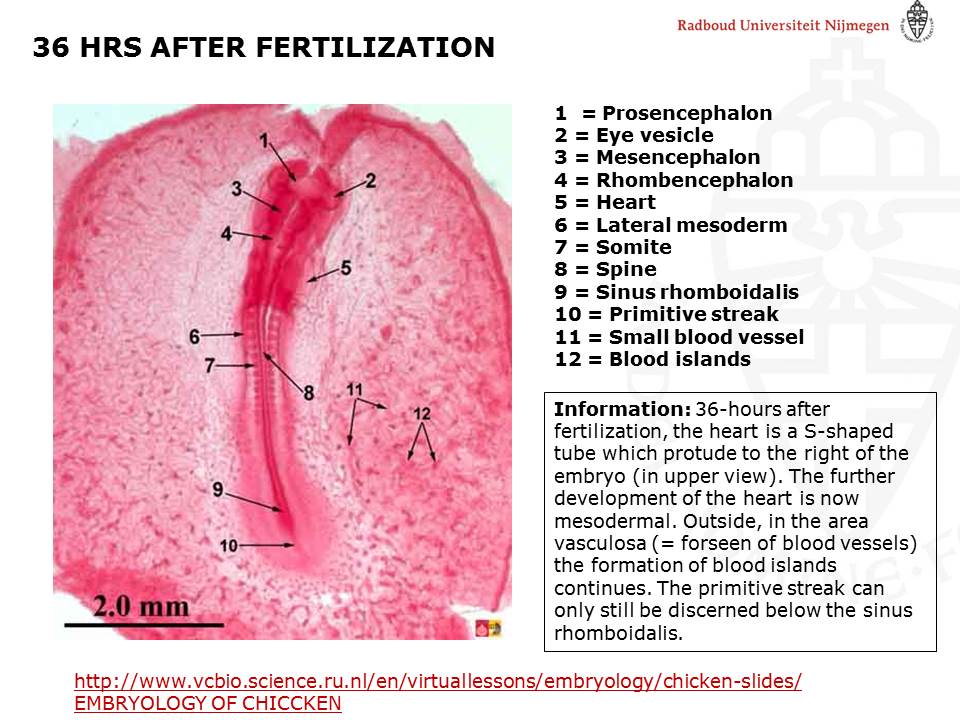

  • Slide 10 36 hrs after fertilization

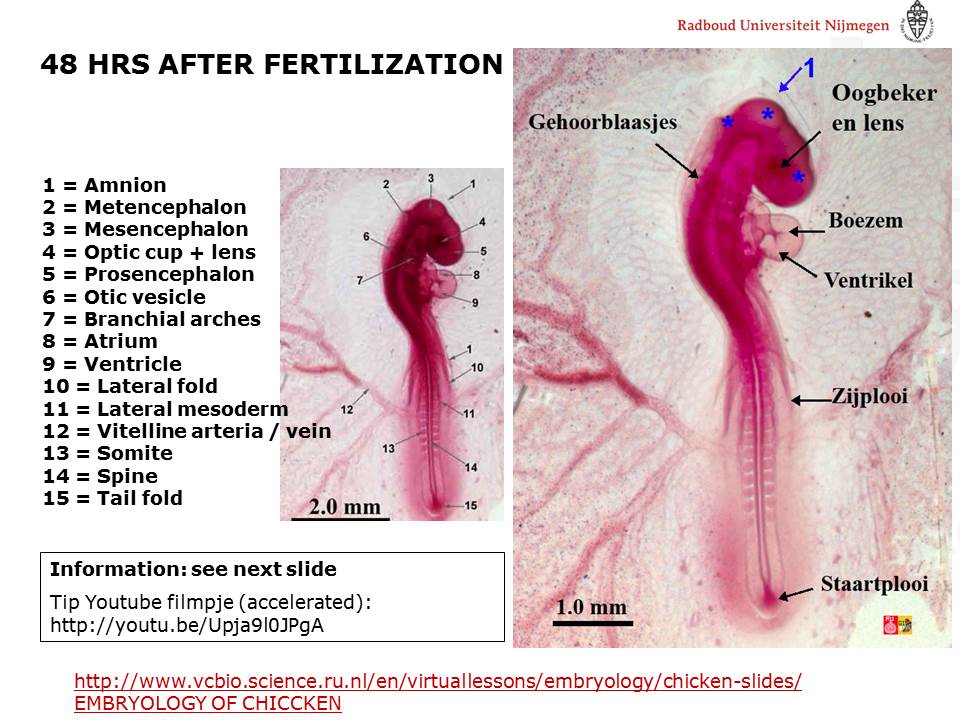

  • Slide 11 48 hrs after fertilization

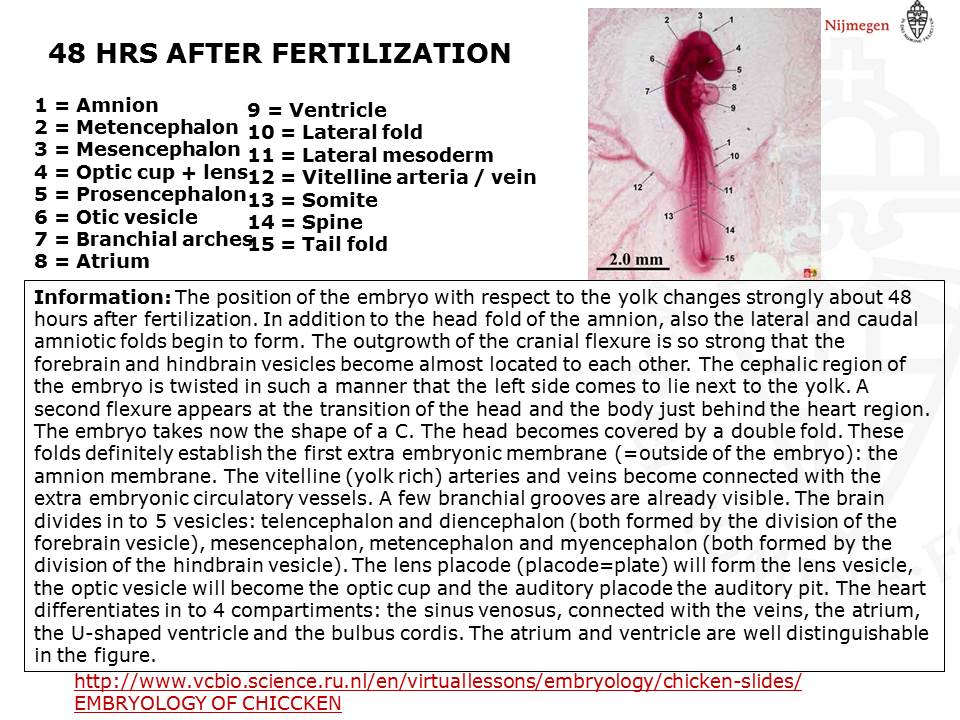

  • Slide 12 48 hrs after fertilization
  • Slide 13 72 hrs after fertilization
  • Slide 14 72 hrs after fertilization - head
  • Slide 15 Overview

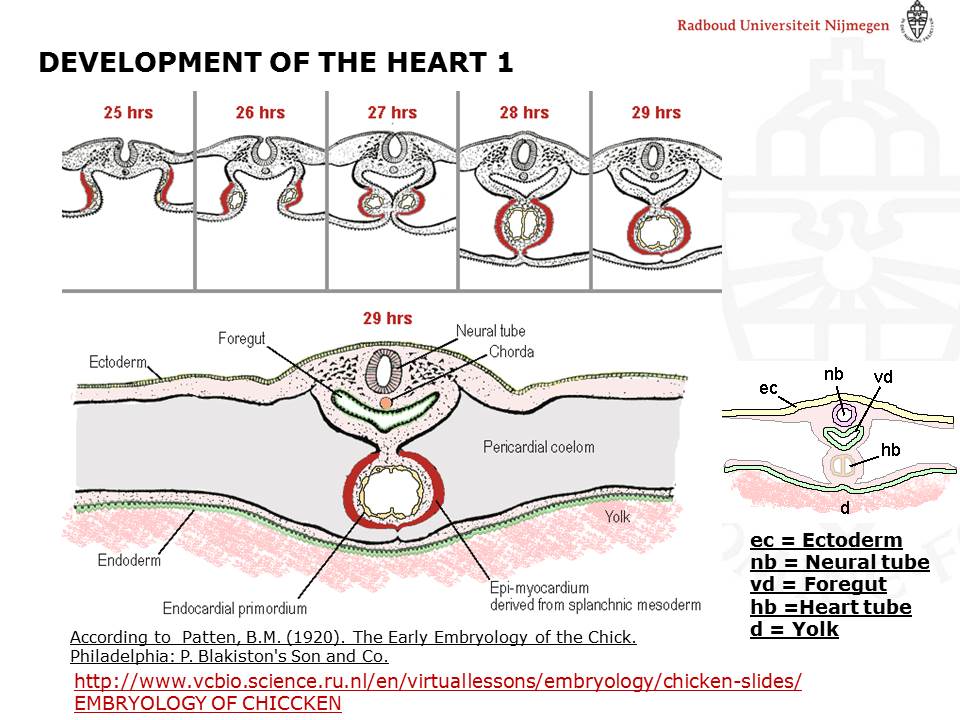

  • Slide 16 Heart development 1

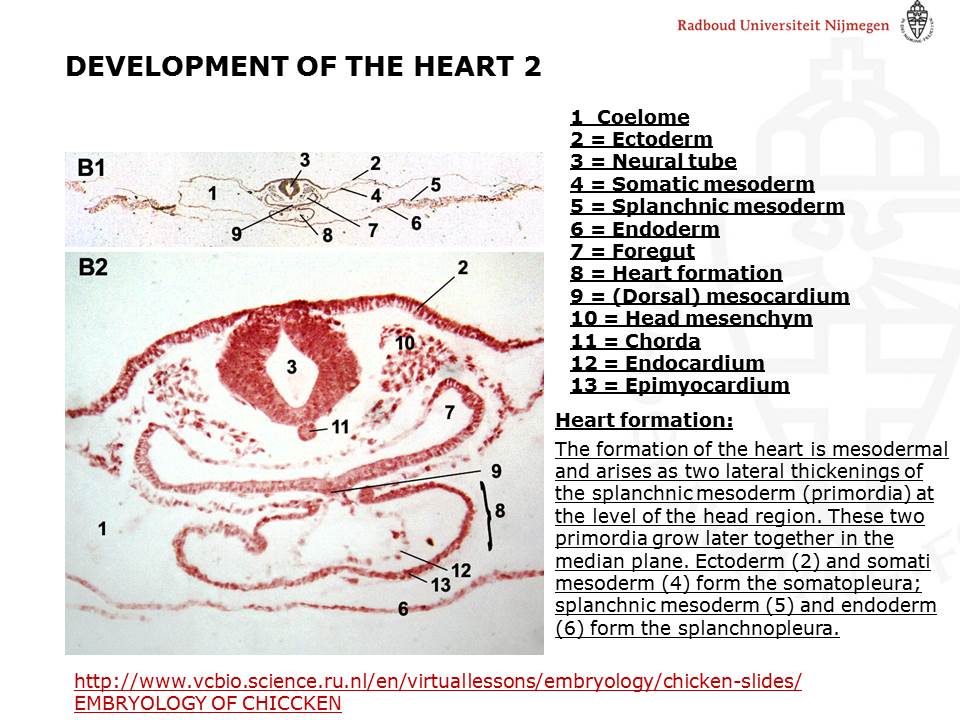

  • Slide 17 heart development 2

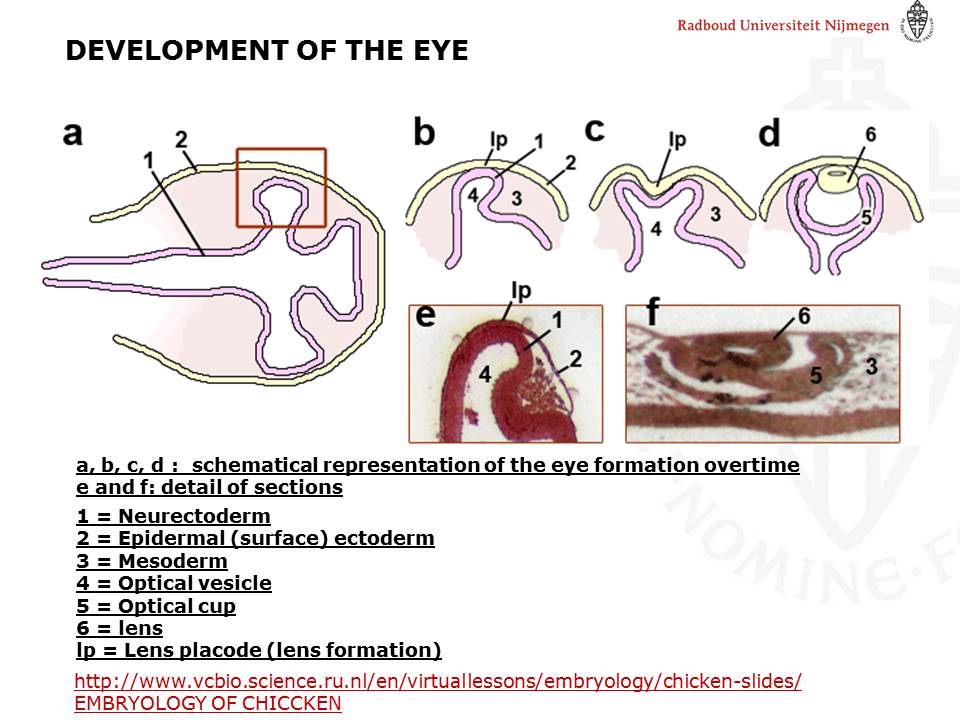

  • Slide 18 Eye development
